904L Stainless Steel Heat Exchange Tube
Classification ：
PRODUCT DETAILS
Product introduction
904L stainless steel heat exchange pipe belongs to super austenitic stainless steel. As a low-carbon, high-nickel, molybdenum austenitic stainless steel pipe, it has excellent activation-passivation transformation ability, excellent corrosion resistance, good corrosion resistance in non oxidizing acids such as sulfuric acid, acetic acid, formic acid, and phosphoric acid, good resistance to pitting in neutral chloride containing media, and good resistance to crevice corrosion and stress corrosion.
It is suitable for sulfuric acid with various concentrations below 70 ℃, and has excellent corrosion resistance under atmospheric pressure in acetic acid with any concentration and temperature, as well as in mixed acids of formic acid and acetic acid. The super austenitic stainless steel 904L stainless steel heat exchange tube is a high alloy austenitic stainless steel with low carbon content. It has excellent corrosion resistance in dilute sulfuric acid, and is designed for harsh corrosive environments. It has a high chromium content and sufficient nickel content. The addition of copper makes it highly resistant to acid, especially chloride interstitial corrosion and stress corrosion cracking, and is not prone to corrosion spots and cracks. Its pitting resistance is slightly superior to other steel grades, and it has good processability and weldability, which can be used for pressure vessels.
| Standard: | ASTM | Place of Origin: | China |
| Type: | Seamless | Model Number: | RT-12-002 |
| Application: | heat exchanger | Steel Grade: | 300 Series, Nickel Alloy, 316L, 304, 825, 625, 400 |
| Outer Diameter: | 31.8mm | Welding Line Type: | Seamless |
| Grade: | 300 Series | Tolerance: | ±5% |
| Alloy Or Not: | Non-Alloy | Section Shape: | Round |
| Invoicing: | by actual weight | Surface Finish: | No.1 |
| Certificate: | ISO PED | Delivery Time: | 15-21 days |
| Package: | Plywood Case | Process method: | VIM ESR |
| Size: | 12.7M M-508M M | Surface: | Pickling |
| Product name: | Heat Exchanger U Tube | Treatment: | Solution Annealing |
| NDT: | Eddy Current Or Hydraulic Test | Inspection: | 100% Inspection |
|
|
|
|
|
|
|
|
|
Heat Exchange Tube Production Process :

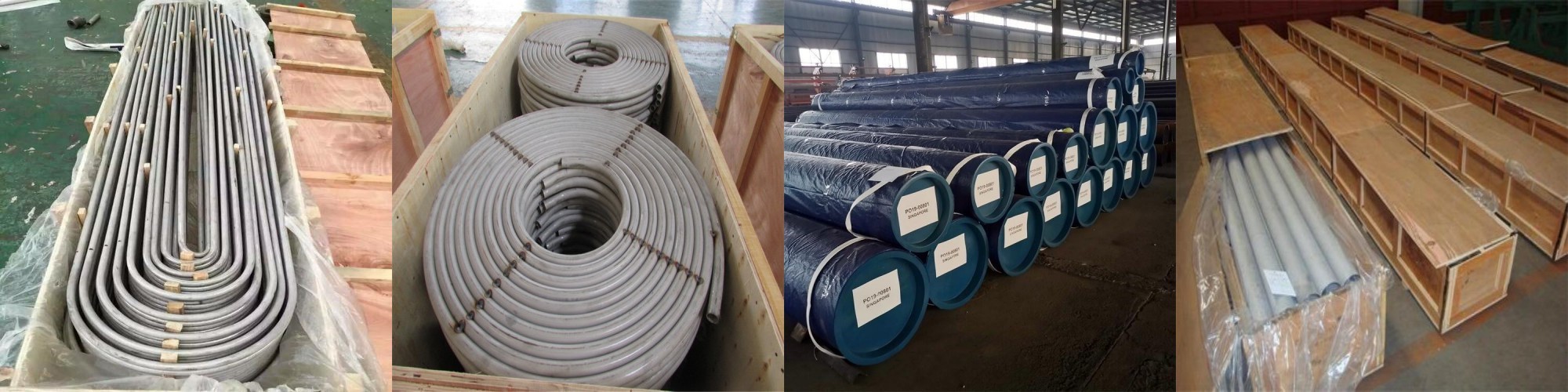

1 . We use Cold Drawn technology to produce U bend tube
2 . U bend tubes produce will accordance to customer's drawings
3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate
4 . The radius is checked for its OD and wall thinning with the recommended specification
5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test
6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test 7 . Each tube is then hydro tested at the recommended pressure to check for leakage
F
actory
Liaocheng Xinju Special Steel Co., LTD., a comprehensive company operating high-quality steel, the geographical location is superior, the transportation is very convenient. The company has a complete and scientific quality system, integrity, strength and product quality have been recognized by the industry. Always adhere to the purpose of high quality, low cost, fast pace and excellent service.
He has over 15 years of export experience serving a wide range of customers from different sectors. Such as the United States, Europe, the Middle East, Southeast Asia, Africa, South America and other markets. Annual exports exceed 400,000 tons.
Packaging & Delivery
Packing: Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package.
Delivery Time: 7-15 days after get deposit.
Application
Due to the many great features of stainless steel, it is widely used in many industries. It includes constructions, home appliances, automobiles, kitchen accessories, mechanical structure, decoration engineering, chemical industry, etc. Let's have a brief review.
Certificate
Liaocheng Xinju Special Steel Co., LTD., has a strict quality control system that closely monitors every step of warehousing, inspection, and packaging. No errors are allowed, and unqualified products are not allowed to be stored. Shandong Chengshun Metal Materials Co., Ltd. is deeply trusted and supported by customers with excellent product quality and excellent service.
FAQ
Q: How can l get your quotation as soon as possible?
A: The email and fax will be checked within 12 hours, meanwhile, the Skype, Wechat and WhatsApp will be online in 24 hour. Please send us your requirement and order information(Steel grade, size, quantity, destination port), we will work out a best price soon.
Q: How do we trust your company?
A:We specialize in steel business for years, headquarter locates in Liaocheng city, Shandong province. You are welcome to investigate in any ways, by all means, you could place an order in Alibaba with trade assurance which could secure your payment.
Q: How could you guarantee your products?
A:Each piece of products is manufactured by certfied workshops, inspected according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q: Do you accept the third party inspection?
A: Yes, absolutely we accept.
Q: Do you provide samples? Is it free or extra?
A: The sample could can provide for customer with free, but the courier freight will be covered by customer account.
Q: Will you delivery the goods on time?
A: Yes, we promise to provide best quality products and delivery on time. Honesty is our company's tenet
